AR-1 Starter Kit
CANA AR-1
The AR-1 was designed as the first and most crucial component of the modular CANA ECOSYSTEM. While designed to pressurize and drive the ecosystem, the AR-1 was designed to first and foremost STAND ALONE. Whether you’re moving on foot, on two wheels, four wheels, setting up camp or in your backyard the AR-1 is expressly designed to meet your water transfer needs. From source to container, container to container, pressurizing a pre-plumbed system or feeding a filter - MOVING WATER is what the AR-1 does. No more hand pumping, no more siphoning, no more dunking containers in the pond. Its application is limited only by your imagination.
Features:
IP65 Enclosure

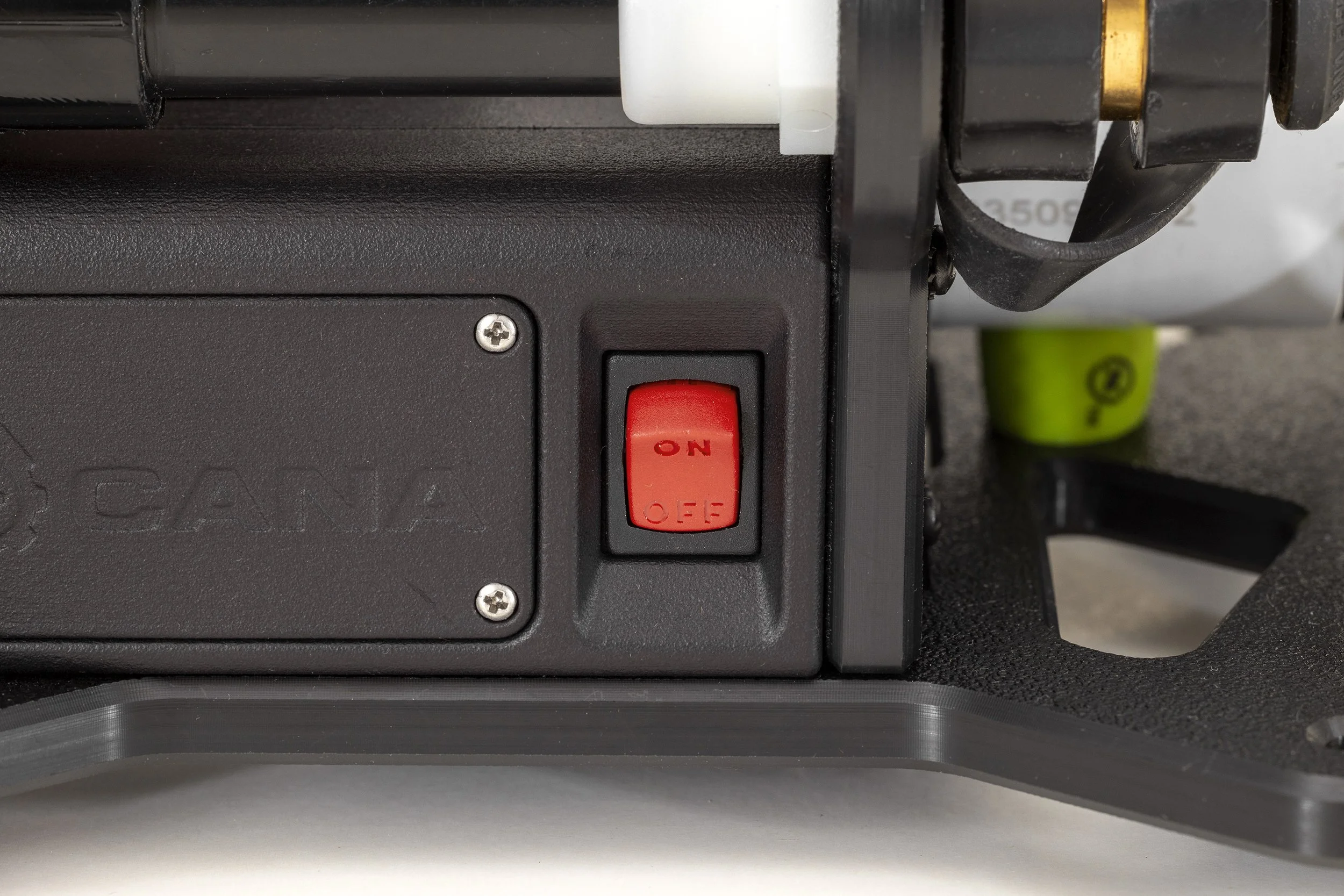

Recessed Switch
Power Present LED Indicator
Anderson 15-45A Connectors
User serviceable 10A SAE Fuse
Machined HDPE Chassis
Crash hardened
Vibration dampened
Near Silent Operation
Provided on-board power and accessory storage
What's included:
AR-1 Pump
12V Accessory power cord with male connector

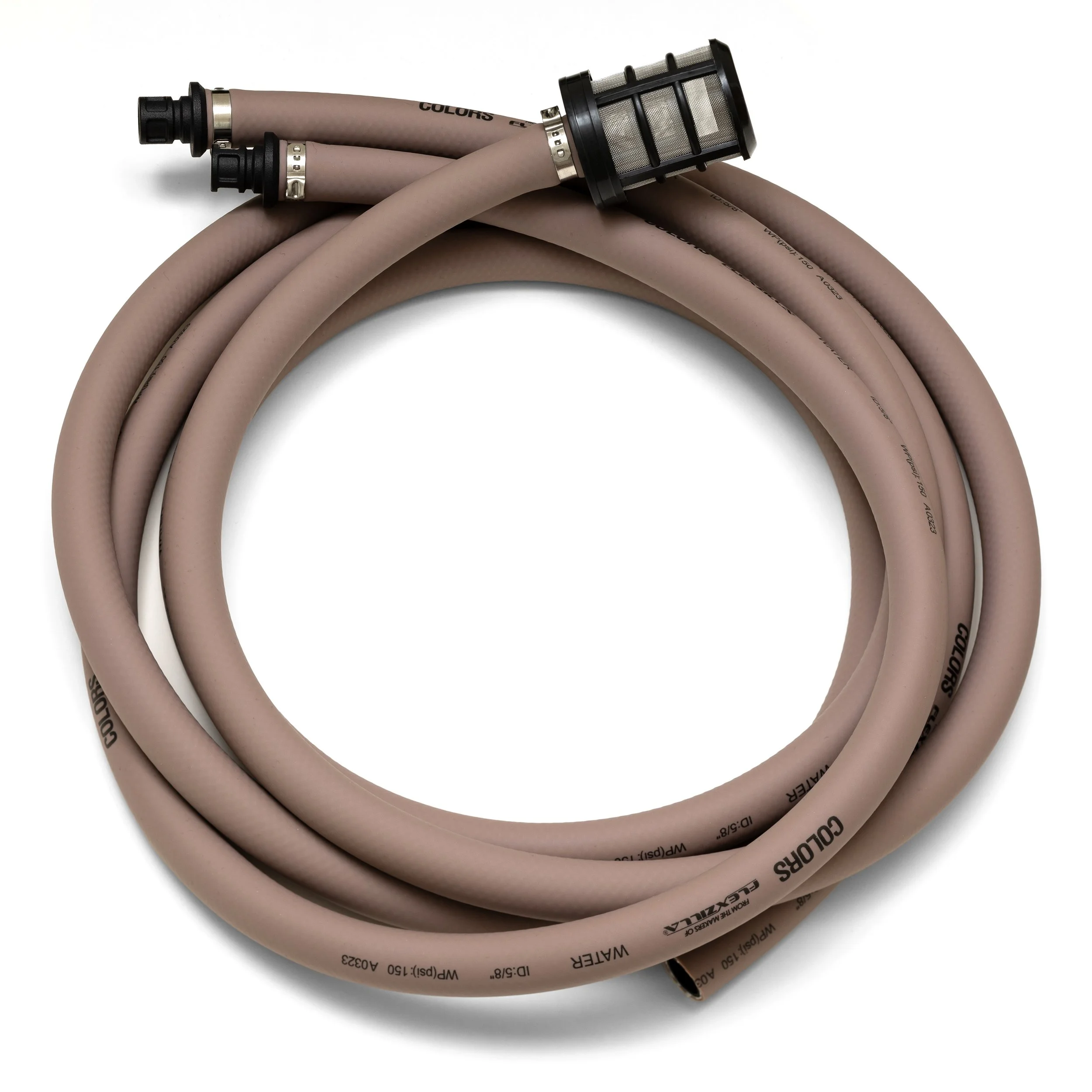

10’ Intake hose with attached pre-strainer and QD connector
5’ Output hose with QD connector
Two in-line strainers
User selectable and serviceable
50mesh Intake Arm Strainer
35 mesh Intake Hose Strainer
QD Hose attachments
Mesh carrying bag
Tethered QD inlet/outlet plugs
Battery Accessory Sleeve (elastic battery retention sleeve) installed on crash bar
Cana Anderson to DC barrel connector (2.1x5.5mm)
TalentCell battery and charging cable
NEW: Includes one set of LumiMod Glow washers - your choice of green or blue
Technical Specifications:
Overall Dimensions: 9”(L)x8.37”(W)x5.5”(H)
Total system weight: 9lbs 3oz
Pump Alone: 6lbs 8.5oz
Intake and outlet hoses alone: 2lbs 2.5oz
Pumps 3.0-3.7 gallons per minute (11.3LPM)
Adjustable Pressure up to 55psi
Pulls 3.5A at 12V during operation
7.5A max, fuse protected
Intake and Outlet hoses are 5/8” ID
CANA Provided in-line strainer: 50 mesh
CANA Provided pre-strainer: 35 mesh
APO/FPO Customers: Please note that USPS has changed their shipping restrictions and WILL NOT ship Li-Ion batteries to APO/FPO addresses. As a result, we must separate the included battery from the AR-1 starter kit. For further information, please contact us at: info@cana-provisions.com
Warnings
The AR-1 is not intended to be treated as a filter. Do not drink water directly from the AR-1.
Before first use flush with 10-15gal of water or until water runs clear.
Do not pump flammable substances or caustic chemicals
Do not use pump in a flammable enviornment with a vapor ignition hazard
Do not submerge AR-1
Avoid drops of more than 4’ onto hard surfaces
Do not exceed 15V of input voltage
Please use AR-1 responsibly
